LCD Keyboard Drawer: 1U 17" LCD Monitor USB KVM Keyboard drawer w/ 16-port switches(Model: NVP117-S1601)

LCD Keyboard Drawer: 1U 17" LCD Monitor USB KVM Keyboard drawer w/ 16-port switches, optional Touch Pad (Model: NVP117-S1601e) & Trackball (Model: NVP117-S1601b)

LCD Keyboard Drawer: 1U 17" LCD Monitor USB KVM Keyboard drawer w/ 16-port switches, optional Touch Pad (Model: NVP117-S1601e) & Trackball (Model: NVP117-S1601b)

Inquiry/Quote Request
rkp117-S1601
  • Overview
  • Specifications
  • Download
Part no. NVP117-S1601e/NVP117-S1601b
Video:

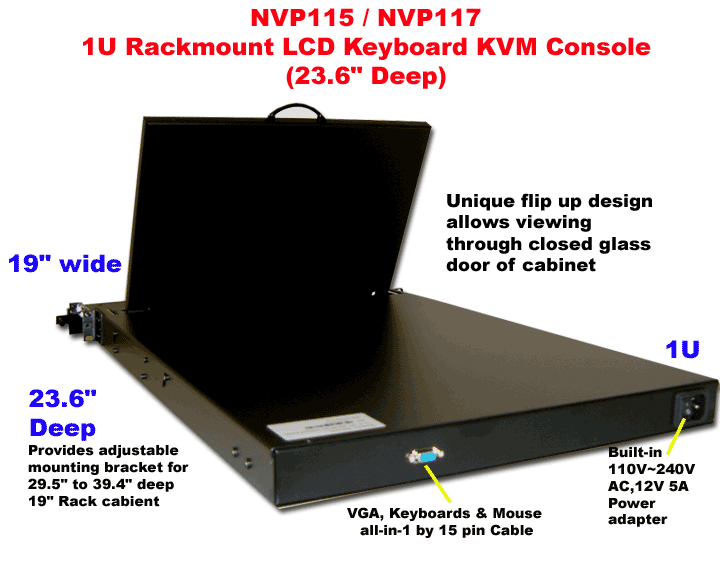

Drawer Features & Display Benefits:
  • 1U 17" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 580mm
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available

Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power

Designed for:

BNC + S-Video DVI-D DC Power Audio Touchscreen

BNC + S-Video Audio

DVI-D Touchscreen - USB

DC Power Touchscreen - Serial

**With touchscreen option, the height of NVP117 / NVP119 will be changed from 1U to 1.5U

Monitor Grade A 15", 17" or 19" industrial TFT LCD panel

LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCF
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
12 kgs
( 26 lbs )
12.7 kgs
( 27.9 lbs )
Gross
16.6 kgs
( 36.5 lbs )
17.3 kgs
( 38.1 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory cUL, FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
NVP117
441.6 x 460 x 44 mm / 17.4 x 18.1 x 1.73 inch
NVP119
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch


Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port


Keyboard Selection:

Supporting layouts



Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NVP117
441.6 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
13 kgs
( 28.6 lbs )
19 kgs
( 41.8 lbs )

KVM Selections :
(X) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NVP11X - MC1116
NVP11X - MC1132
1
1
2
-
NVP11X - MC2116
NVP11X - MC2132
1
1
0
-
NVP11X - MC0116
NVP11X - MC0132
1
2
0
-
NVP11X - MC0216
NVP11X - MC0232
1
3
0
-
NVP11X - MC0316
NVP11X - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP11X - CIP8
NVP11X - CIP16
NVP11X - CIP32
1
1
0
NVP11X - CCE8
NVP11X - CCE16
NVP11X - CCE32
1
0
0
NVP11X - C8
NVP11X - C16
NVP11X - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NVP11X - M118
NVP11X - M1116
-
1
1
2
NVP11X - M218
NVP11X - M2116
-
1
1
0
NVP11X - M018
NVP11X - M0116
-
1
2
0
NVP11X - M028
NVP11X - M0216
-
1
3
0
NVP11X - M038
NVP11X - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVIP11X - 82
NVP11X - 162
-
1
1
0
NVP11X - CE8
NVP11X - CE16
-
1
0
0
NVP11X - S801
NVP11X - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NVP11X - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )

USB Hub DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVIP11X - 82H
NVP11X - 162H
-
1
1
0
NVP11X - CE8H
NVP11X - CE16H
-
1
0
0
NVP11X - 801H
NVP11X - 1601H
-
USB KVM Cable : NB-6 / 10 / 15 ( 6, 10 or 15 ft )


Top
Click here for Specification Order Information

Specification
LCD
Panel Samsung 17" LCD Panel
Screen Type TFT
Display Area 337.92(H) x 270.34(V) mm
Contrast Ratio 500 : 1
Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 - 80 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Typ.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 43.9(W) x 4.45(H) x 60(D)cm
Packing dimension73.5(L) x 57.5(W) x 18(H)cm
Diagram

USB Single Console KVM Switch

8-Port
16-port
PC port
8
16
PC Port interface
HDDB 15 pin
N/A
PC Computer Interface USB port: Type A Female USB port: Type A Female
VGA : HDDB 15pin Female VGA : HDDB 15pin Female
KVM Cable Connection 2-in-one HDDB 15-pin KVM Cable
(CB-6/ 10/ 15)		 2-in-one HDDB 15-pin KVM Cable
(CB-6/ 10/ 15)
PC Selection
On screen display menu, Hot key, Push button
LED
1 Bank LED
1 Bank LED
8 Online LED (Green)
16 Online LED (Green)
8 Selected LED (Green)
16 Selected LED (Green)
On screen display control
Yes
Scan intervals
5-99 seconds
Keyboard and mouse emulation
USB
VGA resolution (Max.)
1920 x 1440
1920 x 1440
CAT.5 cable length (Max.)
N/A
N/A
Bandwidth
200MHz
200MHz
Cascade Level (Max.)
8 Levels
Housing
Metal
Power Adapter
DC 12V 1A
DC 12V 1A
Operation Temperature
0~40 ℃
Humidity
0~80%, Non-Condensing


Ordering Information
KVM Support
15" LCD series
17" LCD series
19" LCD series
1-port
NVP115 NVP117 NVP119
1-port
NVP115U NVP117U NVP119U

Console
8-port
NVP115-801 NVP117-801 NVP119-801
16-port
NVP115-1601 NVP117-1601 NVP119-1601
8-port
 NVP115-S801 NVP117-S801 NVP119-S801
16-port
 NVP115-S1601 NVP117-S1601 NVP119-S1601

2 Consoles
Over CAT5
8-port
 NV11582 NV11782 NV11982
16-port
 NV115162 NV117162 NV119162
8-port
 NV11582U NV11782U NV11982U
16-port
 NV115162U NV117162U NV119162U

2 Consoles
Over IP
8-port
 NVIP11582 NVIP11782 NVIP11982
16-port
 NVIP115162 NVIP117162 NVIP119162
