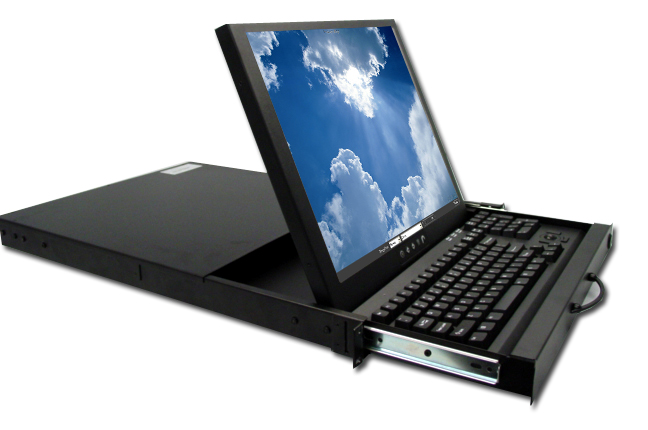

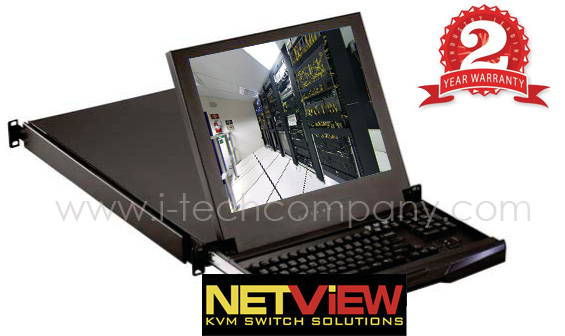

1U Server Console 19-inch TFT LCD Keyboard Drawer (Model: NVP1619)

1U Server Console 19-inch TFT LCD Keyboard Drawer w/ option Trackball (Model: NVP1619d) & Touch-pad (Model: NVP1619t)

1U Server Console 19-inch TFT LCD Keyboard Drawer w/ option Trackball (Model: NVP1619d) & Touch-pad (Model: NVP1619t)

Inquiry/Quote Request
NVP1619
  • Overview
  • Specifications
  • Download
Part no. NVP1619d/NVP1619t

LCD Drawer Benefits:
  • 1U 17" or 19" LCD console drawer
  • US compact keyboard layout with either trackball ortouchpad
  • Combo interface either PS/2 or USB for single console drawer
  • Enhanced aesthetics with molded front handle and two point lock
  • Slide rails with fixed positions to prevent drawer movement when typing

Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D( either one)
  • 17" / 19" Touchscreen : Capacitive, Resistive
  • 48V, 24V or 12VDC power
Designd for:

Options:

BNC + S-Video DVI-D DC Power Audio Touchscreen

Monitor

LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCFL
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
12 kgs
( 26 lbs )
13 kgs
( 29 lbs )
Gross
16.5 kgs
( 36 lbs )
17.5 kgs
( 39 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product
441.6 x 700 x 44 mm /17.4 x 27.6 x 1.73 inch
Packing

595 x 910 x 140 mm / 23.4 x 35.8 x 5.5 inch


Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port
Keyboard Selection:

Supporting layouts      Only



Top
Specification
LCD
Panel Samsung 19" LCD Panel
Screen Type TFT
Display Area 386.4(H) x 289.8(V) mm
Contrast Ratio 700 : 1
Viewing Angle 170 ° (H) x 170 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.242(H) x 0.242(W) mm
Response Time Tr=15ms, Tf=10ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.7M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 KHz (Max.)
Vertical Synchronization 60 Hz (Max.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 44.2(W) x 4.45(H) x 67(D)cm
Packing dimension 74(L) x 57(W) x 18(H)cm
Diagram

Ordering Information
Model no. Description
Net / gross weight
NVP1617 1U height, 17" TFT LCD monitor keyboard drawer
18kg / 24kg
NVP1619 1U height, 19" TFT LCD monitor keyboard drawer
19kg / 25kg
