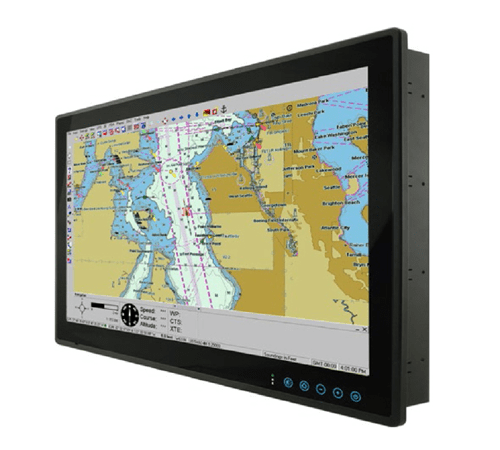

Rugged 26" Marine Panel Mount LCD Display IP65 1920 x 1080, 350nits Projective Capacitive Multi-touch (Model: WPM-MAR-W2600A1F-PCT10)

Rugged 26" Marine Panel Mount LCD Display IP65 1920 x 1080, 350nits, 0-100% Dimming, wide Temp -10 to 55C and 24V DC, RS232 Control, VGA+DVI-D. Anti-vibration 0.7g@DNV2.4 (Class A) Anti-Shock 15G, 11ms duration. Capacitive touch keys for quick function access and display control. (Support ECDIS DAY, DUSK, and NIGHT mode switching), Compliant with marine standards (DNV2.4, IEC 60945 4th, IACS-E10) (Model: WPM-MAR-W2600A1F-PCT10)

Rugged 26" Marine Panel Mount LCD Display IP65 1920 x 1080, 350nits, 0-100% Dimming, wide Temp -10 to 55C and 24V DC, RS232 Control, VGA+DVI-D. Anti-vibration 0.7g@DNV2.4 (Class A) Anti-Shock 15G, 11ms duration. Capacitive touch keys for quick function access and display control. (Support ECDIS DAY, DUSK, and NIGHT mode switching), Compliant with marine standards (DNV2.4, IEC 60945 4th, IACS-E10) (Model: WPM-MAR-W2600A1F-PCT10)

Main Feature

  • 26" 1920 x 1200 resolution with projective capacitive multi-touch screen
  • Edge-to-edge narrow bezel design and fanless cooling system
  • Color calibrated for ECDIS compliance
  • Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
  • Compliant with marine standards (DNV2.4, IEC 60945 4th, IACS-E10)
Inquiry/Quote Request
rugge-marine-panel-mount-lcd-wpm-mar-w2600a1f-pct
  • Overview
  • Download
  • Contact Sales
Display Specifications
Resolution 1920 x1200
Pixel Pitch  0.2865(H) x 0.2865 (V) mm
Contrast Ratio 1500 :1(typ.)
Brightness 350 cd/m (typ.)
Viewable Angle 88°/88°/88°/88° (typ.) (Up/Down/Left/Right)
Active Display Area 550.1 (H) x 343.8 (V) mm
Max Colors 16.7 M colors, 8 bits/color
Touch Screen Projective Capacitive Multi- touch (Optional AR Protection Glass)
Buzzer 75 dB~80 dB, 2300 Hz, 1m
Input / Output Connectors
DVI Input DVI-D 24pin (female)
HDMI Input 1 x HDMI 1.4 , 1 x HDMI 2.0
Display Port Input Display Port 1.2
VGA Input  D-SUB 15pin (female)
Remote Control VIA RS232             D-SUB 9pin (female)
Touch   USB type A (female)
Audio                        Audio in
DC Input Terminal block 3pin (phoenix type)
User Controls
OSD control via programmable capacitive touch keys 0 to 55°C Degree
(ECDIS, Home, Brightness(+,-), Power)
Remote control via RS232 serial interface
Mechanical
Mechanical Mounting Panel Mount, VESA Mount
Dimension 621mm x 432.4mm x 85.5mm
Panel Mount Cutout 598mm x 408mm
Housing Anodized Aluminum Bezel
IP Rating IP66 (Front Side)
Environmental
Operating Temperature -15 to 55 deg.C
Operating Humidity 5% to 95% (non condensing)
Anti Vibration 0.7g@DNV2.4 (Class A)
Anti Shock  15G,11ms duration
Certification
DNV 2.4, IEC60945 4th, CE, FCC
