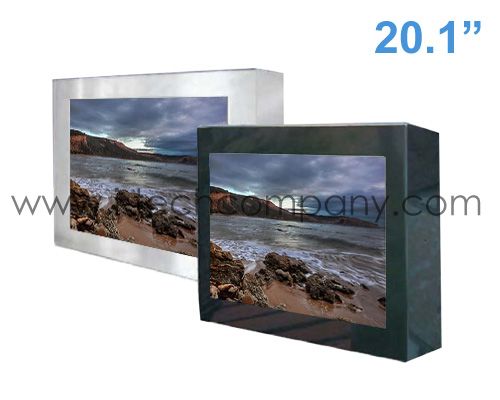

20.1" LCD Rugged Completely Sealed IP66 / NEMA4X Stainless Steel Chassis Mount, Water / Dust proof (Model: WCH2000A2-IP)

20.1" LCD Rugged Completely Sealed IP66 / NEMA4X Stainless Steel Chassis Mount, Water / Dust proof (Model: WCH2000A2-IP)

20.1" LCD Rugged Completely Sealed IP66 / NEMA4X Stainless Steel Chassis Mount, Water / Dust proof (Model: WCH2000A2-IP)

Inquiry/Quote Request
WCH2000A2-IP-
  • Overview
  • Download

Features:
  • Enclosure: Completely sealed, IP65 (NEMA4) grade.
  • Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance.
  • Stainless Material:
    CNS JIS ASTM AISI DIM
    304 SUS 304 S30400 304 1.4301


Specifications:
Technical Description
Screen Size (diagonal) 20.1"
Active Display Area (mm) 408mm (H) x 306mm(V)
Pixel Pitch (mm) 0.255 (H) x 0.255 (V)
Native Display Resolution (pixels) 1600x1200
Brightness (CD/m^2) 300(typ.)
Contrast Ratio 800:1(typ.)
Viewing Angles (L/R/U/D) -89~89(H) x -89~89(V)
Number of Colors 16,7M (8bit colors)
Optional Touch Screen Resistive
Power Information
Power Source DC12V in
Power Consumption(Normal operation) 41 W typical, normal operation
Power Input VESA DPMS Compliant
Display Signals
Plug & Play VESA DDC 1/2B
Video Input (optional) yes
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
