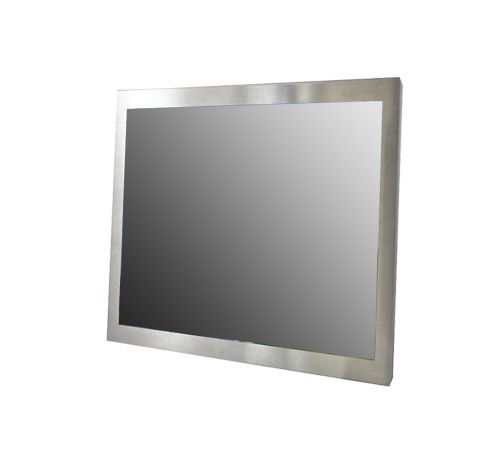

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 12.1" LCD monitor , 1024 x 768, 250 nits, with Glass, VGA and DVI input. (Model: CCH1210-SIP)
Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 12.1" LCD monitor , 1024 x 768, 250 nits, with Glass, VGA and DVI input. (Model: CCH1210-SIP)
Main Feature
- High Contrast color TFT LCD Monitor support resolution up to (1024 x 768)
- Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| ViewableSize Image | 12.1" | ||||
| ActiveDisplay Area(mm) | 245.76 (H) x 184.32(V) | ||||
| PixelPitch(mm) | - | ||||
| Numberof Pixels | 1024x768 | ||||
| ContrastRatio | 700:1 (typ.) | ||||
| DisplayColor | 262K (6 bits/color) | ||||
| Brightness(cd/m2 ) | 250 (typ.) | ||||
| ViewingAngle(CR>=10) | -80~80 (H); -70~70(V) | ||||
| Synchronization Range Horizontal/Vertical | 31.5~46.9KHz /60~75Hz | ||||
| Recommended Resolution | 1024x768@60Hz, 75Hz | ||||
| Signal Connector | D-Sub 15pin | ||||
| I/O | 3 pin Power cable(IP65 connector); 10 pin VGA cable (IP65 connector); DVI (IP65 connectors); USB cable for Touch (IP65 connector) Optional for RS232 for touch (IP65 connector) |
||||
| Power Source | 12V DC in, withExternal AC to DC Adapter (100~240 VC) | ||||
| Power Consumption | 15W typical, normaloperation | ||||
| Power Management | VESA DPMS Compliant | ||||
| Plug & Play | VESA DDC 1/2B | ||||
| Optional TouchScreen | Resistive and PCAPTouch | ||||
| Optional video | Yes | ||||
| Optional Optical bonding | For MoisturePrevention | ||||
| CNS | JIS | ASTM | AISI | DIM | |
| Stainless Material | 304 | SUS304 | S30400 | 304 | 1.4301 |
