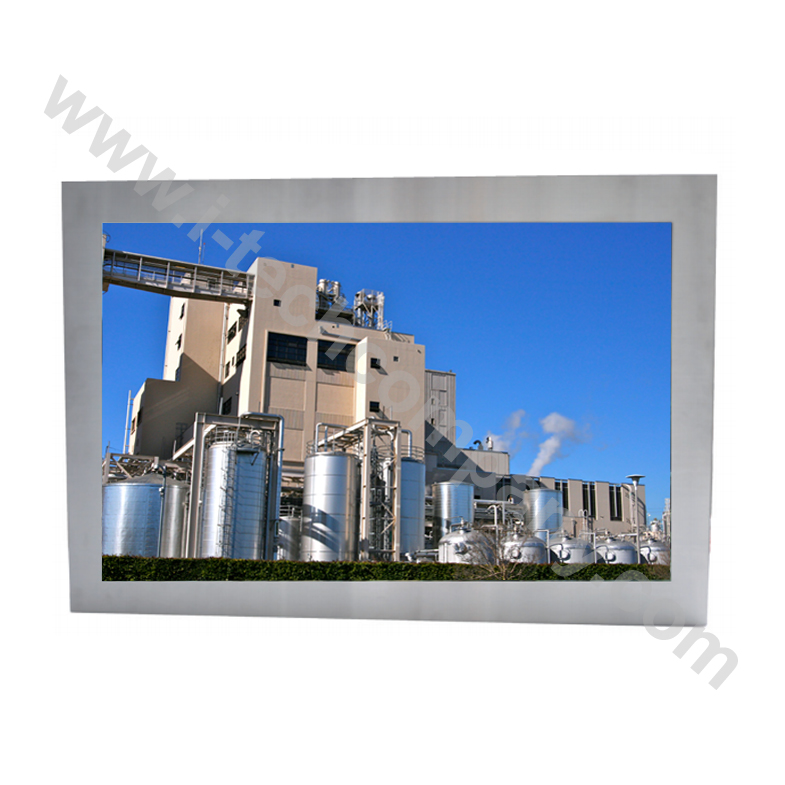

Fully Sealed IP65 32" Wide LCD Monitor, 1920x1080, 400nits, 178/178, Operating Temp 0-50C, VGA and DVI input with 10 points Projective Capacitive Touch (1-2mm) USB Controller, Internal power supply 90~240VAC input (Model: CCHW3200-SIP-PCT)
Fully Sealed IP65 32" Wide LCD Monitor, 1920x1080, 400nits, 178/178, Operating Temp 0-50C, VGA and DVI input with 10 points Projective Capacitive Touch (1-2mm) USB Controller, Internal power supply 90~240VAC input (Model: CCHW3200-SIP-PCT)
Main Feature
- High Contrast color LCD Monitor with resolution up to FULL HD (1920x1080)
- Completely Sealed FULL IP65/NEMA4X
- High Shock & Vibration Resistance
- Widely Application: Automation, Medical, Tourist, Transportation
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
Display |
Viewing Size Image | 32" |
| Active Display Area (mm) | 701.80 (H) x 396.40 (V) | |
| Pixel Pitch (mm) | 0.3638(H)x 0.3638(V) | |
| Resolution | 1920 x 1080 | |
| Contrast Ratio | 3000: 1(typ.) | |
| Color | 16.7 M(8bits+colors) | |
| Brightness | 400 cd/㎡ | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | VGA+DVI | |
Power |
Source | 90 ~ 240VAC |
| Consumption | 75W typical, normal operation | |
| Management | VESA DPMS Compliant | |
| Operating Temp | 0°C ~ 50°C | |
Optional |
Touch | Resistive, PCAP,IR |
| High Brightness | 1000,1500 | |
| Auto Dimming | YES | |
| POWER in | DC24V | |
| Remote Control | YES | |
| IO | AV,HDMI,DP |
| Sales Inquiry | ||
 |
Sales Phone: | 888-483-2418/Press 2 510-226-9226/Press 2 |
 |
Email: | sales@itechlcd.com |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
