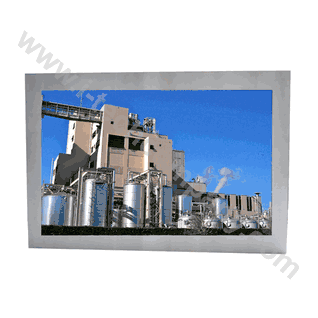

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 32" LCD monitor , 1920 x 1080, 1000 nits, with Glass, VGA and DVI input. (Model: CCHW3200HB-SIP)
Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 32" LCD monitor , 1920 x 1080, 1000 nits, with Glass, VGA and DVI input. (Model: CCHW3200HB-SIP)
Main Feature
- High Contrast color TFT LCD Monitor support resolution up to Full HD (1920x1080)
- Widely used in chemical industry,food industry,mdecial devices, appliances etc with good corrosion resistance
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
Display |
Viewing Size Image | 32” |
| Active Display Area (mm) | 698.4 (H) x 392.85 (V) | |
| Pixel Pitch (mm) | 0.3638(H)x 0.3638(V) | |
| Resolution | 1920 x 1080 | |
| Contrast Ratio | 3000: 1(typ.) | |
| Color | 16.7 M(8bits+colors) | |
| Brightness | 1000 cd/㎡ | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | VGA, DVI | |
| Power | Source | AC100V~AC240V |
| Consumption | 75W typical, normal operation | |
| Management | VESA DPMS Compliant | |
| Optional | Touch | Resistive, PCAP,IR |
| High Brightness | 1000,1500 | |
| Auto Dimming | YES | |
| POWER in | DC24V | |
| Remote Control | YES | |
| IO | AV,HDMI,DP |
