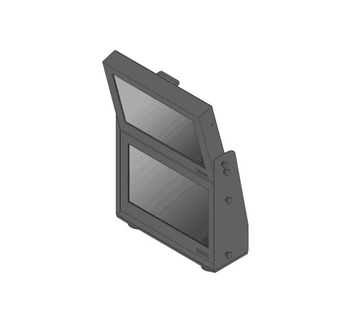

21.5" Dual Rugged Display 5xBNC RGBHV, 1 xVGA, 1 xDVI, 1 xHDMI, AC90~264V (Model: 1A94910-NmilW2150-D2-BT-P1)
21.5" Rugged Display, 1920 x 1200, 350 cd/m2, Glass Protect Front, 5xBNC RGBHV, 1 x VGA, 1 x DVI, 1 x HDMI, AC90~264V, Shock/Vibration Proof Desk-Mount Stand
X
Inquiry/Quote Request
- Specifications
- Download
| LCD Display | LCD Panel | Dual 21.5" LCD Display LCD Size Each : 21.5" TFT LCD diagonal Resolution : 1920x1080 Brightness: 350 cd/m2 Contrast Ratio : 1000: 1 View Angle : 89/89/89/89 ultra wide view angles Aspect Ratio: 16:10 No. of Color: 16.7M Backlight: LED backlighting |
| Front | Glass Protect Front | Each display with a strengthen glass protected front |
| Mechanical | Chassis Material | Galvanized steel with anti-corrosion treatment |
| Top & Bottom Bracket | Heavy-Duty Top and Bottom Bracket desktop mount | |
| Tilt and Lock at 15° | Top Unit tilt and lock at 15 degree forward | |
| Color | Black is standard. Other color is optional | |
| Shock Stand | Shock/Vibration Stand | Shock/Vibration-Proof Desktop-Mount Stand. |
| Stand Ability | Each stand supports from 20 up to 40 Kgs | |
| Desktop Mount | Desktop Mount, each stand has four feet, each feet has holes two screw | |
| Dimension | Dimension | Please refer to the above drawings |
| I/O Port for Each Display | VGA | 1 xVGA |
| DVI-D | 1 xDVI | |
| HDMI | 1 xHDMI | |
| Power Connector | Power Connector | 1 x AC connector with military round connector |
| Power Consumption | Power Consumption | 18 Watts for each display |
| Power Supply | AC Input | AC90-264V |
| Power Capacity | Up to 110W max. for each display | |
| Power Supply Grade | Military grade power supply supports MIL-STD-1275 | |
| Environmental Conditions | MIL-STD-810F | Method 514.5 compliant |
| MIL-STD-810F | Method 507.4 compliant | |
| MIL-STD-810G | MIL-STD-810G compliant | |
| Transit Drop | MIL-STD-81 OF 51 6.5 compliant | |
| High Temperature | MIL-STD-81 OF method 501.4 operating compliant | |
| Low Temperature Operating | MIL-STD-81 OF 502.4 Low Temperature compliant MIL-STD-81 OF 502.4 Operating compliant |
