Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

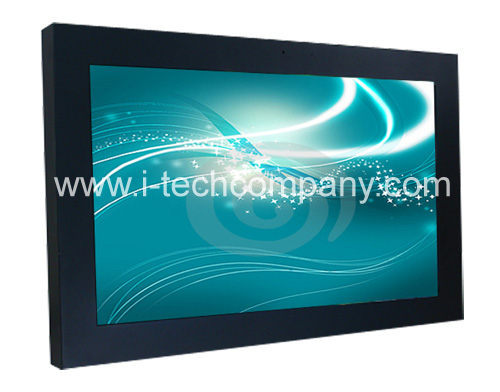

iCHPC2600IR-I Panel PC has a friendly interface which the user will find easy to use. As a leading industrial PC solution provider, iCHPC2600IR-I Panel PC brings you the best qualities as well as superior performance. iCHPC2600IR-I26 is an extremely powerful industrial all-in-one touch screen panel pc. With its 26” widescreen TFT LCD panel supporting high definition 720P 1366x768 resolution, it demonstrates perfect video quality at Full HD integrated with Intel® Core 2 Duo Processors and the latest embedded Intel® GM45/ICH9-M chipset which is capable of hardware decoding. With its Capacitive touch screen Panel and integrated wireless wifi b/g(optional), it is a perfect fit for applications like pubic information kiosk, product show case, digital signage advertising, interactive product guides, and many more.

FEATURES:

- 26” TFT WXGA Capacitive Touch Panel
- Intel® T3100 1.9G 1M L2 or P8400 2.26G 3M L2
- Intel® GM45/ICH9-M
- 1GB DDR3 800/1066 SO-DIMM (up to 4GB)
- 1x HDMI, 3x USB, 1x COM port, 1x DVI, 1x RJ45,
- 1xMic in, 1x Line out, 1x DC-IN

SYSTEM
CPU	Intel® T3100 1.9G 1M L2 or P8400 2.26G 3M L2
Chipset	Intel® GM45/ICH9-M chipset
Memory	2GB SO-DIMM DDR3 800/1066 (up to 4GB)
Touch Screen	Capacitive Touch
LAN	RJ-45, Gigabit Ethernet (Intel® 82567)
Expansion Slot	1x Compact Flash Type socket
Storage	2.5” SATA HDD 160GB or 2.5” SATA SD(option)
Power Supply	AC-DC 254Watt power
Audio	Built-in 2x8W speaker
Dimension	680.8x427.8x80.75mm
Environmental	Operation temp: 32°F ~ 95°F ( 0°C~35 °C) Storage temp: -4°F ~ 140°F (-20°C ~ 60°C) Humidity: Operation 20%~80% Storage 10%~80%
LED	LED
Weight	14kg/30.8Lbs

DISPLAY
Display Type	26 ” TFT WXGA LCD (16:9)
Brightness	450cd/m2
Resolution	1366x768 Pixels

OPTIONAL
Communication	WLAN Module 802.11b/g
Camera	1.3M Camera
MIC	MIC module
Stand	Table stand
Mount	Wall Mount Kit
