BPC1700BB
  • Overview
  • Download

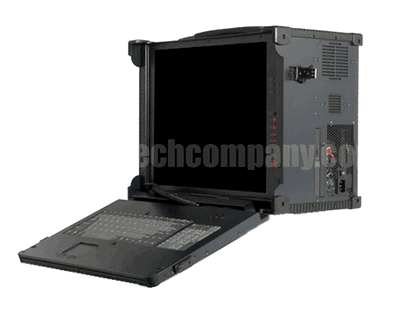

The BPC1700BB is a full feature light weight multi-slot portable computer system with rugged aluminum chassis construction and corner bumper protection. It utilizes the latest Intel Core i7 processor for the fastest processing possible and best value on the market. The system features all current expansion slot including PCI Express, PCI-X and PCI in single system for maximum compatibility. The unit is integrated with a 17" standard and optional widescreen high resolution LCD. Internal storage starts at 250GB and offers extra 4 removable 2.5" drive space which capable of storing 4TB+ of data. Everything is combine in a portable package with USB, Gigabit Ethernet and a foldable keyboard w/ touchpad.


Features

  • 17" Screen LCD (Standard 4:3 and Widescreen 16:10 Available)
  • Resolution Display Option of 1280x1024 and 1680x1050
  • Intel Core i7 Processor with QPI
  • High Speed DDR3 Memory
  • Light Weight Full Feature Portability
  • Supermicro Server Based System Configuration
  • Energy Efficient 80 Plus Power Source
  • PCI-E, PCI-X and PCI Slot Expansion
  • Dual Gigabit Ethernet Support
  • Aluminum Alloy Housing Design
  • Integrated Keyboard and Touchpad



Specifications

Chassis Aluminum alloy frame with rubber corners
System Intel X58 Chipset
Display 17" TFT LCD (1280x1024 Resolution)
17" Wide TFT LCD (1680x1050 Resolution)
Processor Intel Core i7 950 Quad Core 3.06GHz 8MB Cache
(Option: i7 980X Extreme Six Core 3.33GHz 12MB Cache)
Memory 4GB DDR3 1333MHz Memory (max 24GB)
Storage 1x 250GB SATA HDD Internal (SSD Optional)
1x Slot Loading DVD-RW Optical Drive
Redundancy Onboard RAID 0,1,5,10
Graphics nVidia Geforce GT220 1GB Memory
Expansion Drive Bays 4x 2.5" Removable SATA Drive Bay Option
OR
5.25"Drive Opening
Expansion Slots 1x PCI-e x16, 1x PCI-e x4, 2x PCI-X, 1x PCI
Ethernet Dual Intel Gigabit LAN
Audio Controller 7.1 Channel High Definition Audio
Integrated Interface 1x RS-232 Ports
4x USB 2.0 Ports
6x SATA 3.0Gb/s Ports (4x Free)
Optional Drive DVD-RW Slim
Floppy Drive FDD Slim (Optional)
Input Peripheral 104 Keys Keyboard
Touchpad Pointing Device
Housing Finish Black Color
Power Supply 600W 110-220V AC Power
Operating System Windows 7 Pro
Weight 25 lb
Dimension 17.5" (W) x 13.5" (H) x 9.5" (D)
Transport Case Padded Carrying Case with Wheels
