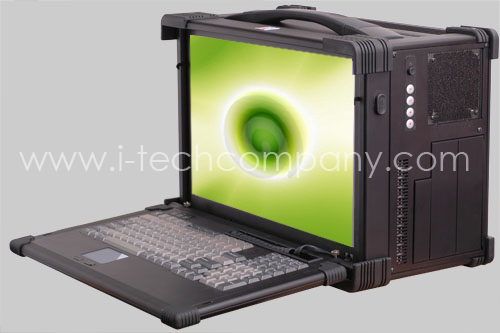

17" TFT LCD Screen with 1440x900 Rugged Portable PC, Intel E7400 2.8GHz (Dual Core) (Model: BPCW1700-DC-4)

Typical Applications

• Military base and field operations
• Field service & diagnostic application in many industries
• Portable servers & workstations
• Network and communications testing
• Field data acquisition
• Field Presentation tool for board manufacturing
• Geophysical exploration
• Factory monitoring/automation Video and audio editing on location

The BPCW1700-DC-4 (HD WideScreen) is a robust lunchbox computer built using heavy duty metal to provide tough, go-anywhere unit ideally suitable for harsh/severe environments and mission critical applications. With passive backplane board configurations to choose from the available full length expansion slots of the BPCW1700-DC-4 can be freely configured with other uniquely designed expansions cards for most applications.

Also desiged for harsh environment operations, the LCD screen of the BPCW1700-DC-4 is guarded with a specially treated anti-glare tempered glass for added protection. Every BPCW1700-DC-4 comes equipped with dual system cooling side fans and easy access to its expansion ports for immediate system upgrade or maintenance. Functional practicality combined with the simple and polished design, the BPCW1700-DC-4 with its extra-rugged construction to sustain bumps and impacted blows is the most cost-effective, durable and efficient portable solution for your mission critical applications.

• All Aluminum Construction
• Built-in 17" TFT LCD Screen with 1440x900
• P5BLS, mATX, SBC, and ATX platforms
• Full length PCI, ISA or PCI/ISA configuration
• Shock-mountated drive bays
• Detachable keyboard
• Transflective technology Sunlight readable LCD (optional)
• A/D board Chipset GENESIS 5621GENESIS 1601
