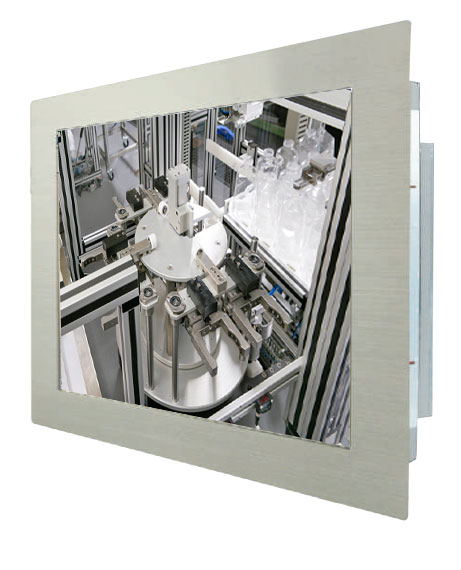

20.1" Stainless LCD Monitor VGA, Optional AV inputs, Touch Screen in 20.1" Stainless LCD display (Model: WPMS2000A2)
20.1" Stainless LCD Monitor VGA, Optional AV inputs, Touch Screen in 20.1" Stainless LCD display (Model: WPMS2000A2)
X
Inquiry/Quote Request
- Overview
- Download
Specification
| Technical Description | |
| Screen Size (diagonal) | 20.1" |
| Active Display Area (mm) | 408(H) x 306(V) |
| Pixel Pitch (mm) | 0.255 (H) x 0.255 (V) |
| Native Display Resolution (pixels) | 1600x1200 |
| Brightness (CD/m^2) | 300(typ.) |
| Contrast Ratio | 800:1(typ.) |
| Viewing Angles (L/R/U/D) | -89~89(H) ; -89~89(V) |
| Number of Colors | 16.7M (8bit colors) |
| Optional Touch Screen | Resistive, SAW |
| Power Information | |
| Power Source | 12V DC in, with External AC to DC Adapter (100~240V AC) |
| Power Consumption(Normal operation) | 60 W typical, normal operation |
| Power Input | VESA DPMS Compliant |
| Display Signals | |
| Plug & Play | VESA DDC 1/2B |
| Video Input (optional) | S-Video,Composite |
| DVI Input (optional) | Yes |
| Remark:R20L100 = VGA input only/ VGA + DVI + Audio input R20L110 = VGA + Video + DVI + Audio input |
| *Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements. |
