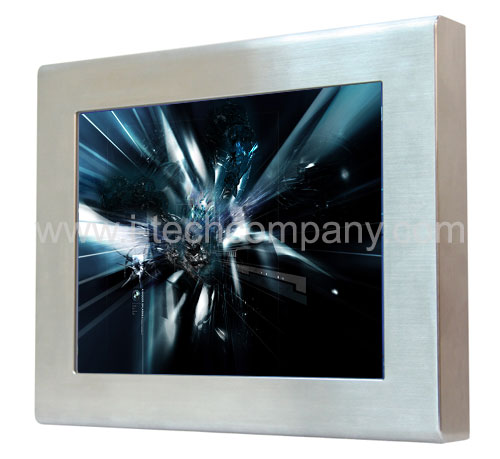

15" XGA Full IP65 display, Hight Brightness, stainless steel enclosure, VGA input, OSD on the back side, Power input DC 11~32V (Model: A1500HB3-SIP-V)
- Overview
- Download
15" XGA Full IP65 display, Hight Brightness, stainless steel enclosure, VGA input, OSD on the back side, Power input DC 11~32V (Model: A1500HB3-SIP-V)
X
Inquiry/Quote Request
Options
- 15" resistive touch screen w/ AR Film Attachment- 15” optical bonding
- 3m VGA waterproof cable
- 3m RS232 waterproof cable
- 3m USB waterproof cable
Features |
|
Specifications
| LCD | |
| Display Type | 15" TFT-LCD |
| Max. Resolution | 1024x768 |
| Max. Colors | 16.7M |
| Brightness | 1000 nits |
| Viewing Angle | H:150° / V:140° |
| Backlight Lifetime | 50,000hrs |
| System | |
| Input Signal | RGB |
| On Screen Display Control | On the rear side |
| External I/O Port | 1 x VGA 1 x USB touch 1 x DC (3pin connector) |
| Power Supply | |
| Power Input | DC 11~32V |
| Touch Screen (For optional) | |
| Type | Resistive type |
| Light Transmission | 80% |
| Mechanical | |
| Construction | Stainless steel |
| IP Rating | Totally IP 65 |
| Mounting | VESA 75x75 Mount |
| Dimension | 399(W)x324(H)x53(D)mm |
| Net Weight | 6.8 kgs |
| Environmental | |
| Operating Temperature | 0~50 |
| Storage Temperature | -20~60 |
| Storage Humidity | 10~90% @40 non-condensing |
| Certificate | Meet CE/FCC Class A |
