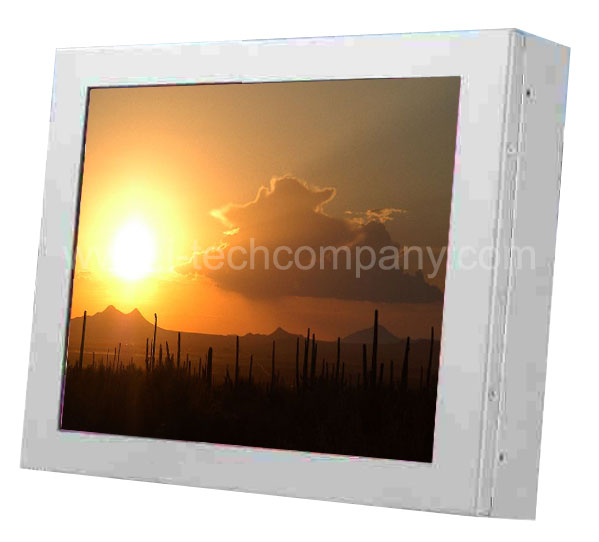

High Brightness/Transflective Sunlight Readable 10.4" Chassis Mount LCD Monitor 500 nits (Model: WCHH1040P1)
High Brightness/Transflective Sunlight Readable 10.4" Chassis Mount LCD Monitor 500 nits (Model: WCHH1040P1)
X
Inquiry/Quote Request
- Overview
- Download
Specification:
| Technical Description | ||||
| Screen Size (diagonal) | 10.4" | |||
| Active Display Area (mm) | 211.2 (H) x 158.4 (V) | |||
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | |||
| Native Display Resolution (pixels) | 800x600 | |||
| Brightness (CD/m^2) | 500 (typ.) | |||
| Contrast Ratio | 500:1 (typ.) | |||
| Viewing Angles (L/R/U/D) | -60~60 (H); -60~40 (V) | |||
| Number of Colors | 262,144 (6bits/color) | |||
| Optional Touch Screen | Resistive, SAW, IR | |||
| Outdoor readability | ||||
| Ambient light(nit) | 15,000 | |||
| Brightness gain (nit) | 500 | |||
| Reflectance(net)(%) |
|
|||
| *** | Simulated brightness number for reference | |||
| Power Information | ||||
| Power Source | AC 100~240 V, Universal,±10% | |||
| Power Consumption(Normal operation) | 18 W typical, normal operation | |||
| Power Input | VESA DPMS Compliant | |||
| Display Signals | ||||
| Plug & Play | VESA DDC 1/2B | |||
| Video Input (optional) | S-Video, Composite | |||
| DVI Input (optional) | No | |||
| *Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements. |
