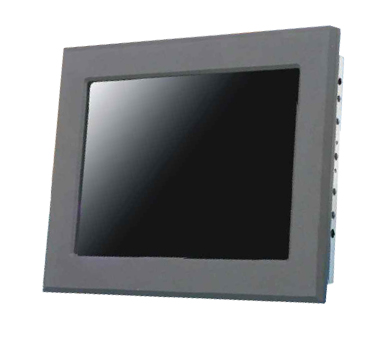

High Brightness/Transflective Sunlight Readable LCD 15" 870 nits Panel Mount LCD Monitor 1024x768 (Model WPMH1500A1)
High Brightness/Transflective Sunlight Readable LCD 15" 870 nits Panel Mount LCD Monitor 1024x768 (Model WPMH1500A1)
X
Inquiry/Quote Request
- Overview
- Download
| Specification | |
| Model Name | WPMH1500A1 |
| Viewable Size lmage | 15" |
| Active Display Area (mm) | 304.1 (H)x228.1 (V) |
| Pixel Pitch (mm) | 0.297 (H)x0.297 (V) |
| Number of Pixels | 1024x768 |
| Contrast Ratio | 400:1 |
| Display Color | 262,144 (6 bits/colors) |
| Brightness (CD/m^2) | 625 |
| Viewing Angle (CR >=10) | -70~~70 (H); -60~~60 (V) |
| Synchronization Range Horizontal / Vertical |
31.5~~60.0 KHz / 60~~75Hz |
| Recommended Resolution | 1024x768@60Hz, 75Hz |
| Signal Connector | 15 pin D-sub |
| Power Soruce | AC 100~~240 V,Universal,±10% |
| Power Consumption | 35 W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
| Optional Video Input | S-Video,Composite |
| Optional DVI Input | Yes |
| Optional Touch Screen | Anti-reflective glass |
| Optional protection glass(refl ection rate<0.5%) |
UV glass/clear type glass |
| Operation Temperature | 0¡ã~50¡ã |
| Outdoor Readability | ||||
| Ambient light(nit) | Brightness measure angle | 10,000 | 30,000 | 80,000 |
| Brightness gain (BL0n)(nit) | 35° | 680 | 870 | 1320 |
| Reflectance(net)(%) | 1% | 0.98% | 0.90% | |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
