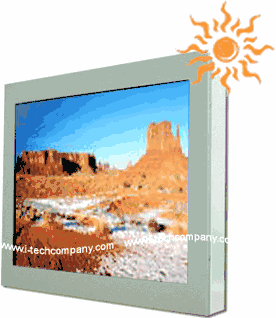

17" Sunlight Readable / High Brightness LCD. Chassis Mount Monitor 510 nits Display. (Model WCHH1700A2)
17" Sunlight Readable / High Brightness LCD. Chassis Mount Monitor 510 nits Display. (Model WCHH1700A2)
X
Inquiry/Quote Request
- Overview
- Download
| Specification | ||||
| Model Name | WCHH1700A2 | |||
| Screen Size | 17" | |||
| Active Display Area (mm) | 337.92 (H)x270.34 (V) | |||
| Pixel Pitch (mm) | 0.264 (H)x0.264 (V) | |||
| Display Resolution (pixel) | 1280x1024 | |||
| Contrast Ratio | 500:1 (typ.) | |||
| Display Color | 16.2M (6bits+FRC) | |||
| Brightness (CD/m^2) | 510 (typ.) | |||
| Viewing Angles (CR >=10) | -70~70 (H); -60~70 (V) | |||
| Synchronization Range_Horizontal / Vertical | 31.5~80.0KHz / 60~75Hz | |||
| Recommended Resolution | 1280x1024@60HZ,75HZ | |||
| Signal Connector | 15 pin D-sub | |||
| Power Source | AC 100~240 V,Universal,±10% | |||
| Power Consumption | 32 W typical, normal operation | |||
| Power Management | VESA DPMS Compliant | |||
| Plug & Play | VESA DDC 1/2B | |||
| Optional Video Input | S-Video, Composite,DVI | |||
| Optional DVI Input | Yes | |||
| Support Video Signal Type | NTAC/PAL | |||
| Optional Touch Screen | Resistive, Capacitive, SAW, IR | |||
| Optional protection glass(refi ection rate<0.5%) |
Optional | |||
| Operation Temperature | 0°C~50°C | |||
| Outdoor readability | ||||
| Ambient light(nit) | Brightness measure Angle |
15,000 |
30,000 |
80,000 |
| Brightness gain(BL off)(nit) | 35 |
540 |
630 | 900 |
| Reflectance(net)(%) | 0.80% |
0.70% |
0.60% |
|
| MECHANICAL DRAWING |
 |
 |
