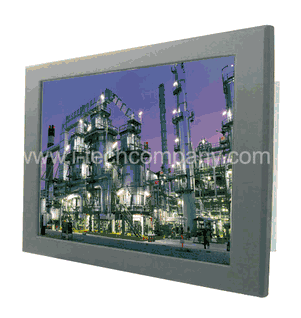

High Brightness/Transflective Sunlight Readable 17" Panel Mount LCD Monitor 1000 nits (Model: WPMH1700A1)
High Brightness/Transflective Sunlight Readable 17" Panel Mount LCD Monitor 1000 nits (Model: WPMH1700A1)
X
Inquiry/Quote Request
- Overview
- Download
Specifications
| Technical Description | |
| Screen Size (diagonal) | 17" |
| Active Display Area (mm) | 337.920(H) × 270.336(V) |
| Pixel Pitch (mm) | 0.264(per one triad) × 0.264 |
| Native Display Resolution (pixels) | 1280x1024 |
| Brightness (CD/m^2) | 1000(typ.) |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angles (L/R/U/D) | -85~85 (H); -80~80 (V) |
| Number of Colors | 16.7M colors (RGB 6-bits +Hi-FRC data) |
| Optional Touch Screen | Resistive, Capacitive, SAW * , IR |
| Power Information | |
| Power Source | 12V DCin, with External AC-DC Adapter(110~240V) |
| Power Consumption(Normal operation) | 25 W typical, normal operation |
| Power Input | VESA DPMS Compliant |
| Display Signals | |
| Plug & Play | VESA DDC 1/2B |
| Video Input (optional) | S-Video,Composite |
| DVI Input (optional) | Yes |
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
