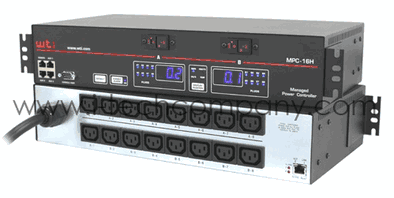

Single 30 Amp, 208-240V, (16) IEC 320 C13 Outlets, 2U (Model: MPC-16HS30-2)

Overview
Download

Single Input
Voltage: 200-240V
Current: 30A (24A Derated)
Connector: NEMA L6-30P 6ft.

Output
Voltage: 200-240V
Current: 30A (24A Derated)
Outlets: (16) IEC C13
Overcurrent Protection: (2) 20A Circuit Breakers

iTechLCD rack mount switched PDUs enable complete control over current, power and energy usage within your data center and across the network. As the first and only rack mount PDUs to meter, report and control total current, power and energy consumption, our switched power distribution units are the perfect solution for data centers striving for LEED certification or reducing energy costs. iTechLCD rack mount switched PDUs can meter and report kWh, kW, A, V, Temperature and schedule equipment shutdowns based on user defined threshold alarms or when devices need a simple power reboot. Energy, power and current data from IT equipment is measured on each circuit within your data center or network and used for billing, heat calculation and load distribution.

iTechLCD rack mount switched PDUs can be used with its standalone IP web browser interface or any MIB based SNMP enterprise management software.

Current Power & Energy Management:

Meter & Report Kilowatt-Hours in the Data Center
Meter & Report Amperage Loads on Each Circuit
Meter & Report Kilowatts for Cooling Demands
Meter & Report Voltage Input
Sense & Report Temperature
Graph Daily, Weekly, Monthly & Yearly Power Consumption
Power Load-Shedding w/ Auto Recovery

Access/Security/Control:

10/100Base-T Ethernet Port
SNMP Control (v1,v2c,v3)
SSHv2 Encryption
LDAP, Kerberos, RADIUS, TACACS+
Alarm Notification via Email, SNMP, Syslog, text message, LED or audible alarm
Command Logging with Audit Trail
SSL Web Browser (Https) for Set Up and Operation
Approved Software Integration

Data Center Power Metering:

True RMS Current Metering
Local 3 Digit LED Display
Current Load Data Collection/Aux Unit Polling
Amp Metering On Power In-Feed
User Defined Threshold Alarms

Remote Reboot & Power Switching:

IP & SNMP Control
Remote Outlet Switching
Automatically Power Reboot Locked Equipment
Timed & Scheduled Power Reboot/Shutdowns

Network-grade Power Distribution:

Circuit Breaker Protection
30 Amp In-Feed
2U Horizontal Mounting
19" Rack Mounting Brackets

Specifications

Interface Descriptions:
Ethernet Port:	10/100Base-T, RJ45
Console Port:	(1) DB9M, RS232C
AUX/LINK Ports:	(3) RJ45, RS232C
Remote Display Port:	(1) RJ45, RS232C
Power:
Voltage:	200 - 250 VAC, 50/60 Hz
Power Distribution: (80% Derated)	2/3 kW
Power Outlets:	(16) IEC-60320-C13
Current:	30 Amps (24 Amps Derated)
Input Feed:	(1) 30 Amp
Overcurrent Protection:	(2) 20 Amp Circuit Breakers
Branches per Input:	2
Power Input Cables:	NEMA L6-30P
Physical/Environmental:
Size:	3.5"H x 19"W x 8.7"D (1U) (8.9 cm H x 48.3 cm W x 22.1 cm D)
Weight:	15 Lbs. (6.8 Kg) Shipping Weight
Operating Temperature:	32° to 122° F (0° C to 50° C)
Humidity:	10% to 90% RH
Mounting:	19" Rack Brackets Included
Agency Approvals:
FCC, UL, CE
