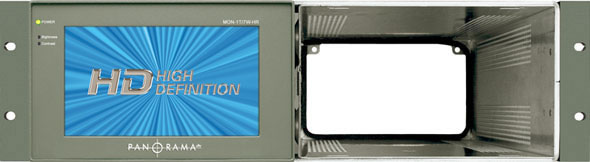

MON1-T/7W-HR

3RU, 7" Widescreen 3U Half-Rack Tektronix Tub Mounted All Digital High Resolution (Model: MON1-T/7W-HR)

Overview
Download

With the MON-HR series of High resolution LCD video monitors with HD-SDI inputs, you can benefit from the crystal clear picture and high resolution from the all digital signal features. Featuring as many pixels as you will find in most modern "HD" plasmas - but in 7" LCD. Ideal for video monitoring of video feeds for mobile trucks, news and transmission control rooms, duplication and post production applications.

Features:

Half-Rack 7" LCD Color Video Monitor
1 HD-SDI or SD-SDI (auto-sensing) Input with buffered HD-SDI/SD-SDI Output
All Digital Signal Path utilizing Panoramadtv?Direct Digital Drive
16:9 Aspect Ratio
Wide Viewing Angle
Fits in Standard Tektronix Half Tub
Front Panel Trim Pot Controls for Brightness and Contrast
Minimal Power Dissipation for a Low Operating Temperature
Low Power Consumption
Power Indication
Internal Universal AC Mains Power Supply

Specifications
Signal Inputs	75 ohm BNC (SMPTE 259M, SMPTE 292M autodetect)
Screen size	7" (177.8mm) diagonal
Screen type	TFT, Transmissive
Display modes	NTSC/PAL autosensing
Aspect ratio	16:9
LCD active area	6.102" x 3.43" (155.00 x 87.12mm)
Picture controls	brightness & contrast
Resolution (dots x lines)	854 x RGB x 480
Dot pitch	0.0605 X 0.1815 mm
Pixel Response Time	7 ms rising (typ.) 18 ms falling (typ.)
Color configuration	RGB stripe
Viewing angle	top=50° bottom=60° left=65° right=65°
Contrast ratio	450 (typ.)
Brightness	400 (typ.) NITs (cd/m2)
LCD lamp life	15,000 hours (avg.) to specified minimum reduction
Chassis type	3U, 19" rack mounting (EIA-310D) in Tektronix Tub
Dimensions (HxWxD)	8.375 x 5.125 x 16.75?(213 x 130 x 425mm)
Weight	5.5lbs (2.5kg)
Power consumption	10W
Power supply	100 to 240VAC, 47 to 63Hz, universal input CE & UL approved internal power supply
