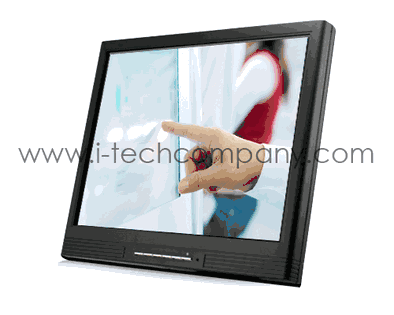

15" Multifunctional Plastic Touch Panel PC system w/ 5-wire Resistive Touch Screen, IP-65 Compliant Front Panel, VESA Compliance. (Model: VPPC1500i5)

15" Multifunctional Plastic Touch Panel PC system w/ 5-wire Resistive Touch Screen, IP-65 Compliant Front Panel, VESA Compliance. (Model: VPPC1500i5)

15" Multifunctional Plastic Touch Panel PC system w/ 5-wire Resistive Touch Screen, IP-65 Compliant Front Panel, VESA Compliance. (Model: VPPC1500i5)

Overview
Download

Features

Fanless Intel® Sandy Bridge Processor Core i5 2510E 2.5Ghz (45W)
Intel®QM67 Chipset
One 204-pin DDR3 SODIMM Up to 4GB SDRAM
4 USB, 2 COM, 1 DVI, 1 HDMI
Dual Intel®Gigabit Ethetnet
Fanless Operation, VESA Compliance
Programmable Function Key

Specifications

Panel

LCD Size	15", 4:3
Resolution	1024 x 768 XGA
Pixel Pitch	0.297mm (H) x 0.297mm (V)
Luminance	300cd/m2
Contrast Ratio	700
Viewing Angle	70 (U), 70 (D), 75 (L), 75 (R)
Response Time	8ms
Backlight	2 x CCFC
Touch Type	5-wire Resistive
Touch Light Transmission	80%
Touch Interface	USB

System

Board	EPI-QM67
CPU	Intel® FCPGA988 Socket Supports Sandy Bridge Processor Core i5 2510E 2.5Ghz (45W)
I/O Chip	Nuvoton NTC6776F
System Chipset	Intel® QM57
System Memory	One 204-pin DDR3 SODIMM Socket Supports Up to 4GB DDR3 1066/1333 SDRAM
Hard Driver Bay	One 2.5 SATA HDD
Watchdog Timer	Reset: 1 ~ 255min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature, Voltage, and Cooling Fan Status. with Auto Throttling Control
Expansion	1 x Mini PCIe Slot, Supports mSATA

Rear I/O

Serial Port	1 x RS-232, 1 x RS-232/422/485
Ethernet	2 x RJ-45 (1 x Intel®82574L Gigabit Ethernet, 1 x Intel®82579 Gigabit Ethernet)
VGA	1 x HDMI
Audio	1 x Line-out (Realtek ALC892 Supports 5.1-CH Audio)
USB	4 x USB 2.0
Mouse & K/B	1 x PS/2 KB & Mouse Connector
Speaker	2 x 2W

Display

Chipset	Intel® QM67
Display Memory	Share System Momory Up to 512MB
Resolution	DVI & HDMI Resolutions Up to 1920 x 1200 @ 60Hz
Dual Display	DVI + LVDS, DVI + HDMI, HDMI + LVDS

Mechanical & Environmental

Color	Front & Rear Panel Black (Plastic)
Mounting	Wall/ Stand/ VESA 100mm X 100mm
System Power Requirement	+12 ~ +19V DC Power Input
Power Adapter	Input: 100 ~ 250Vdc/ 47 ~ 63Hz Output: 84W Adapter (12V @ 7A Adapter)
Operating Temp.	0 ~ 40°C (32 ~ 104°F)
Storage Temp.	-20 ~ 50°C (-4 ~ 122°F)
Relative Humidity	5% ~ 90% Relative Humidity, Non-condensing
Dimensions	340mm x 285mm x 68mm
Weight	4.6Kgs
