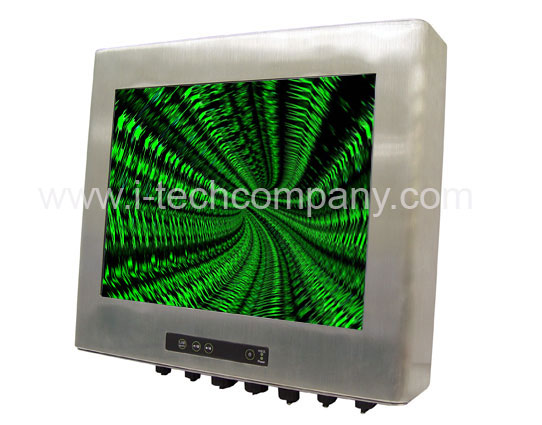

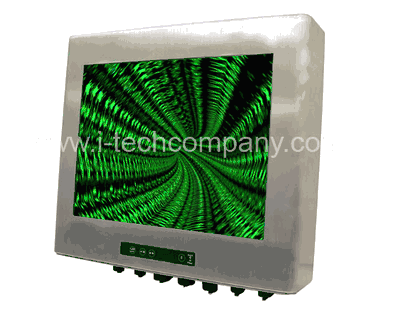

15.1" LCD, 1024x768, Full IP65/Stainless steel, Resistive Touch, Atom N270 1.6 GHz, 945GSE ICH7M, 512MB. (Model: WCHPC1500A-SIP-TRF)
- Overview
- Download
15.1" LCD, 1024x768, Full IP65/Stainless steel, Resistive Touch, Atom N270 1.6 GHz, 945GSE ICH7M, 512MB. (Model: WCHPC1500A-SIP-TRF)
X
Inquiry/Quote Request
Features:
| ● | Whole set IP65 enclosure protection design |
| ● | Fanless operation for up to 40C ambient, up to 50C w/ smart fan design |
| ● | Stainless steel housing (standard: SUS 304, optional: SUS 316) with water/dust-proof sealing |
| ● | Intel low power Atom N270 1.6 GHz processor, 2.5W TPD (thermal power design) |
| ● | 15.1” 4:3 1024x768 LCD display with 350 nits brightness |
| ● | Mainboard design with Intel 945GSE + Intel ICH7M, 533 MHz FSB |
| ● | Resistive and infrared touch panel integration |
| ● | Water-proof add-on options of wireless LAN kit, CF, connector cover/cable |
Specifications:
| Computing | |
| Processor / Socket | Intel Atom N270 1.6 GHz / On-board |
| Chipset / FSB | Intel 945GSE & Intel ICH7M / 533 MHz FSB |
| Graphics | Integrated Intel Graphics Media Accelerator 950 |
| Memory | 2 GB maximum, single channel, DDR2-533 SODIMM, slot x 1 |
| Mass storage | SATA HDD, IDE CF (or DOM) |
| Expansion | Mini-PCI-e, PCI (optional) |
| Audio | . Amplifier: 2W x 2 . Integrated speaker: None |
| I/O interface | USB x 4, PS/2 x 2, RS232 x 2, RS232/422/485, LAN (Gigabit) x 2, VGA, line-in, line-out, microphone-in, DC-in |
| Power supply | External, universal, 80 watts, DC-out: 12 V |
| Power consumption (Max.) | . W/ power supply: 50 watts . W/O power supply: 43 watts |
| Mechanical & system | |
| Enclosure format | Chassis |
| Enclosure material | Front: & rear: Stainless steel (standard: SUS 304, optional: SUS 316) |
| Enclosure protection | . Front bezel: IP65 . Rear cover: IP65 . IR touch : IP65 |
| Thermal management | 40C operation - . Fanless: Yes . Smart fan : No . Enclosure heat-sink: None 50C operation - . Fanless: No . Smart fan : Yes . Enclosure heat-sink: None |
| Front bezel user control | Membrane type, power on/off, brightness, LCD backlight on/off |
| Mounting / Stand | . VESA 100x100 mm . Stand: None |
| Temperature | . Operating: 0° ~ 40° C / 50° C (optional) . Storage: -20° ~ 65° C |
| Dimension (W x H x D) | 395 x 345 x 93.5 mm (approximate, varies with different touch) |
| Weight (Net) | 9 kg (approximate, w/ resistive touch) |
| Certifications | FCC-A, CE(EMC/LVD), VCCI, UL/cUL |
| Extra features | . HDD anti-vibration . Watchdog timer . Temperature monitoring & underclocking |
| LCD panel | |
| Size & resolution | . Size: 15.1”, 4:3 . Resolution: 1024x768 |
| Optical characteristic-1 | . Brightness: 350 . Contrast: 700:1 . Color: RGB 6-bit + FRC data |
| Optical characteristic-2 | . Viewing angle: 140/120 (H/V) . Response time: 8 ms (On+Off) |
| Backlight module | . Lamp: CCFL x 2 . Life: 50,000 hours |
| Touch panel | |
| Resistive | . Light transmission: 80+-3% . Hardness: 3H . 5-wire, AG coating |
| Infrared 1 | . Light transmission: >= 90% . Hardness: 7 Mohs . Toughened glass |
| Infrared 2 | . Light transmission: >= 90% . Hardness: 7 Mohs . AR toughened glass |
Configuration & Options
| 1 : | LCD panel | Brightness: 350 nits |
| 2 : | Touch panel | Resistive 5-wire, infrared (clear glass), infrared (AR glass) |
| 3 : | Processor | Intel Atom N270 1.6 GHz |
| 4 : | Memory | 2 G, 1 G |
| 5 : | HDD | SATA: 160 G 5400 rpm |
| 6 : | DOM | 8 G, 4 G, 2 G |
| 7 : | CF card | 8 G, 2 G |
| 8 : | Wireless LAN kit | Mini PCI-e, 802.11 b/g w/ watre-proof external antenna |
| 9 : | Power adaptor | DC power cable length: 1.2m (standard), 8m (optional) / all with DC-out water-proof cover |
| 10 : | Water-proof connector cover & cable kit | . Standard: w/ DC-in, PS/2 x 2, USB x 2, LAN, RS232, RS232/422/485, all external cables are water-proof & 2m long . Optional: Per customer requests |
| 11 : | Stainless housing | . Standard: SUS 304 . Optional: SUS 316 |
