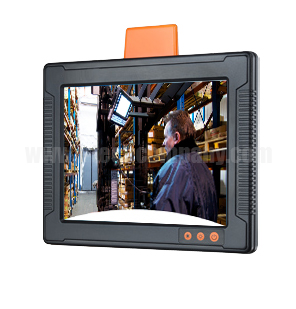

12.1"Vehicle Mount Computer Resistive Touch, BayTrial Platform, Intel® Sinqle-Core Atom N450 (1.66GHz) , Windows XP/7 (Model: RAT1210AT)
- Overview
- Download
12.1"Vehicle Mount Computer Resistive Touch, BayTrial Platform, Intel® Sinqle-Core Atom N450 (1.66GHz) , Windows XP/7 (Model: RAT1210AT)
X
Inquiry/Quote Request
Features
• 12.1" LED backlight panel with resistive touchscreen• Rugged aluminum enclosure and fanless design
• P65 dust/water protection
• Meet MIL-STD 810G standard anti-vibration shock
• Wide range 8-36V DC Power input with ignition control
• VESA 75 and 100 standard mounting
• Flexible expansion capability for WiFi, Bluetooth, LTE/HSPA+/EVDO, GPS
Specifications
| System | Processor | Intel® Sinqle-Core Atom N450 (1.66GHz) |
| System Memory | 2GB SO-DIMM DDR2-800 | |
| Storage | 16GB Compact Flash (up to 64GB) 16GB SATAN SSD (up to 512GB) |
|
| Operating System | Windows XP Pro. Windows Embedded Standard 2009 Windows 7 Pro. Windows Embedded Standard 7 |
|
| Display | Size | 12.1-inch |
| Resolution | 1024x768 | |
| Brightness | 400 nits | |
| Backlight | LED Backlight | |
| Touch screen | Type | 8-Wire Resistive Touch |
| Keypad | Keypad | Power On/Off Brightness Adjustment |
| RF Communication | WLAN | 802.11a/b/g/n (Optional, CCX v4 Certificated) 802.11a/b/g/n/ac (Optional) |
| WWAN | 3G (Optional, HSPA+, EDGE, GSM/GPRS) 3G (Optional, EVDO) 4G (Optional, LTE, HSPA+, EDGE, GSM/GPRS, EVDO) |
|
| Bluetooth | Bluetooth 2.1 (Optional) | |
| GPS | SIRF III GPS/GLONASS (Optional) Beidou GPS (Optional) |
|
| I/O Connectors | COM | 1 x RS-232 (COM1, full-function) 1 x RS-232/422/485 (COM2, full-function) |
| USB | 2 XUSB2.0 | |
| LAN | 2 x GbE LAN (RJ-45) | |
| Others | 1 xVGA 1 x Power Connector 3 x TNC Connectors for External Antenna (WiFi, Bluetooth, WWAN, GPS) |
|
| Audio | Speaker | 2 x Speaker (8ohm, 2w) |
| Power | Power Input | 8-36V DC |
| Power Consumption | 25W typ. | |
| Ignition On/Off | Power on delay, default 10 seconds; Power off delay, default 10 seconds; (Off delay time can be changed to 30s or 120s via jumper); Hardware power off delay 120 seconds after ignition off; |
|
| Environmental | Operating Temp. | -30~70°C |
| Relative Humidity | 5%-95%, non-condensing | |
| IP Proof | IP65 (I/O interface must be closed) | |
| Shock and Vibration | Shock: MIL-STD-810G Method 516.6 Procedure I Vibration: MIL-STD-810G Method 514.6 Procedure I |
|
| Certifications | CE, FCC | |
| Mechanical | Housing | Aluminum |
| Dimension | 320 x 260 x 66 mm(W x L x H) | |
| Weight | 4.25 Kg |
