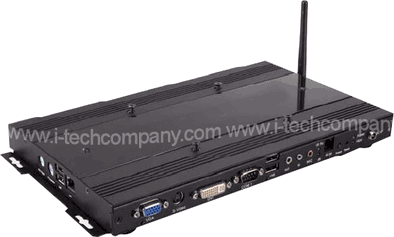

VMPC (C7 1.0GHz processor, 512MB DDR2 memory, 40GB IDE HDD, WLAN module) (Model: VDSPC1000)

Overview
Download

Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Ever wondered where you're going to hide that hideous box? Wonder no more; with a FANLESS 1 inch THIN chassis with industry standard VESA mounting holes, the vmpc VDSPC1000 solves all your mounting headaches. With hardware MPEG 2 / 4, WMV9 acceleration, the vmpc VDSPC1000 transforms any VESA compliant displays to a media rich thin client or Digital Signage. Just pick your panel n GO.

Only 1” Thin

VESA Mounted

Features

• MPEG-2 / 4, WMV9 decoding acceleration
• VIA Gigabit Ethernet, optional VIA Solomon Wireless LAN 802.11b/g
• DVI-D, VGA and S-Video (Dual View supported)
• 1 x COM, 4 x USB 2.0
• VIA Vinyl 6 Channel Audio
• VESA Mounted
• Completely Fanless

Specification

Processor :	Onboard VIA C7 1 GHz, VIA Eden 1.5 GHz
Memory :	512MB DDR2 memory supporting up to 1Gb
Graphics :	VIA UniChrome Pro II AGP graphics with MPEG-2 / 4, WMV9 decoding acceleration
Network :	VIA Gigabit Ethernet, optional Wireless LAN 802.11g
Storage :	40GB IDE HDD
Audio :	Line-out, Line-in, Mic-in (VIA Vinyl 6 Channel Audio)
Video :	1 x DVI-D, 1 x D-Sub 15, 1 x S-Video TV-Out (Dual View)
IO :	2 x PS/2 ports, 1 x COM port, 4 x USB 2.0 ports
System Management :	Temperatures / Voltages Monitoring, Wake-on-LAN, Watch Dog Timer, Keyboard / Timer Power-On, Power Failure Recovery
Operating Systems:	Linux based operating systems Microsoft Windows XP / XPe other operating systems are undergoing validation
Power Input :	DC 12V
Thermal System :	Totally Fanless
Chassis :	Totally Ventless: Dust Resistant
Temperature :	32 ~ 113°F (Operating), -4 ~ 158°F (Storage)
Dimensions :	7.09” (H) x 11.73” (W) x 1.00” (D)
Net Weight:	4.41 lbs

Options

•Wireless LAN : Internal VIA Solomon 802.11b/g module
•Remote Control : IR remote controller + sensor cable

Data Sheet

VMPC (C7 1.0GHz processor, 512MB DDR2 memory, 40GB IDE HDD, WLAN module) (Model: VDSPC1000)
