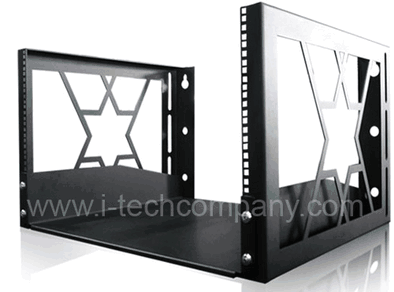

9U Wallmount Open Frame Rack (Model: WOF916)

9U Wallmount Open Frame Rack (Model: WOF916)
  • ISO View

9U Wallmount Open Frame Rack (Model: WOF916)

wall-mount-rack-wof916
  • Overview
  • Specifications
Open frame wall-mount rack, provides simplicity with mobility. Quick and easy assembly steps to setup open rack. The WU sturdy steel frame construction enforces stability and durability. Open frame rack has higher thermal manageability by room or central air conditioning. WOF series is a flexible and cost-effective solution for rack-mount devices.

Features:
  • Open Frame Construction Enables Quick Access to Rackmount System
  • Max Air Flow and Temperature Control by Central AC or by Room
  • Cost-Effective Solution
  • Wallmount or Desktop Standalone, Convenient for Storage
  • Modular Design, Easily Assemble and Disassemble
Specification

Model Number WOF916
RoHS Compliance Version Yes
Rack Units 9U
Dimensions (W x H x D) 20.1 x 16.5 x 16.1 inch
Industry Standard ANSI/EIA RS-310-C/D, UL, CE
MIL-STD-167 shock-proof test
Material Rack: SPCC 2.0mm
Base: SPCC 1.6mm
Surface Treatment Powder Coating ( hot hardening powder-coated to prevent rust, scratch, and oxidation)
Weight 19 lbs
Loading Capacity 40 lbs

Mechanical Drawing
