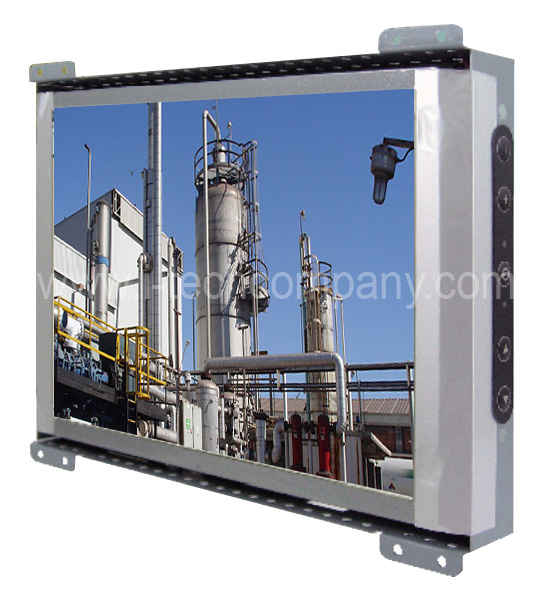

10.4" Open Frame LCD Monitor w/ VGA, AV (Model WOP1040P1AV)

10.4" Open Frame LCD Monitor w/ VGA, S-Video and Composite Inputs. Open Frame 10.4" Touch Screen (Model WOP1040P1AV)

10.4" Open Frame LCD Monitor w/ VGA, S-Video and Composite Inputs. Open Frame 10.4" Touch Screen (Model WOP1040P1AV)

Inquiry/Quote Request
WOP1040P1AV
  • Overview
  • Download


Technical Description
Model Name WOP1040P1AV
Screen Size (diagonal) 10.4"
Active Display Area (mm) 211.2(H) x 158.4(V)
Pixel Pitch (mm) 0.264(H) x 0.264(V)
Native Display Resolution (pixels) 800x600
Brightness (CD/m^2) 400 (typ.)
Contrast Ratio 700:1 (typ.)
Viewing Angles (L/R/U/D) -80~80 (H); -80~60 (V)
Number of Colors 16.2M (8bits/color)
Optional Touch Screen Resistive, SAW, IR
Power Information
Power Source 12V DC in, with External AC-DC Adapter(100~240V)
Power Consumption(Normal operation) 13 W typical, normal operation
Power Input VESA DPMS Compliant
Display Signals
Plug & Play VESA DDC 1/2B
Video Input (optional) S-Video, Composite
DVI Input (optional) No
