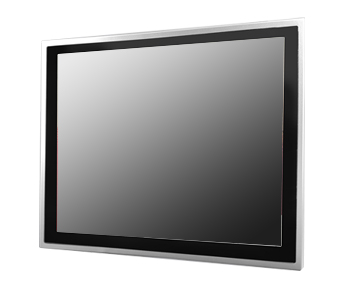

Zero Bezel Panel Mount, 19" LCD Monitor 1280 x 1024, High Brightness LED 1000 nits, VGA input, wide view angle with PCAP Touch (Model: EZPM1900WVHB-PCAP)

Zero Bezel Panel Mount, 19" LCD Monitor 1280 x 1024, High Brightness LED 1000 nits, VGA input, wide view angle with PCAP Touch (Model: EZPM1900WVHB-PCAP)

Zero Bezel Panel Mount, 19" LCD Monitor 1280 x 1024, High Brightness LED 1000 nits, VGA input, wide view angle with PCAP Touch (Model: EZPM1900WVHB-PCAP)

Main Feature

  • Modular construction for more flexibility in terms of product configuration as well easy maintenance
  • Optional build-in touch screen for interactive application
  • VGA connector with optional AV,SV,AV-Looping
  • Available with auto-brightness sensor offers application in day and night
  • Complete custom design/solution for OEM customers
Inquiry/Quote Request
EZPM1900WVHB-PCAP
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low re lection coating
Aspect Ratio / Size 4 : 3 / 19" viewable diagonal area
Active Area / Pixel Pitch 376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm
Native Resolution / Colors 1280(H) x 1024(V) / 16.7 M
Brightness / Contrast 1000 cd/m2 (typ) / 800 : 1
Response Time < 5 ms
Viewing Angle (typical) H. 178° (- 89° ~ + 89° ) , V. 178° (- 89° ~ + 89° )
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 32.5 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 6 Kgs / 7 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

OPTIONS:

  • Touch: Projected Capacitive Touch and Protected glass
  • Video/TV: Video/TV, SV + AV, SV + AV + AV_Looping, SV + AV + TV
  • Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
  • Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
