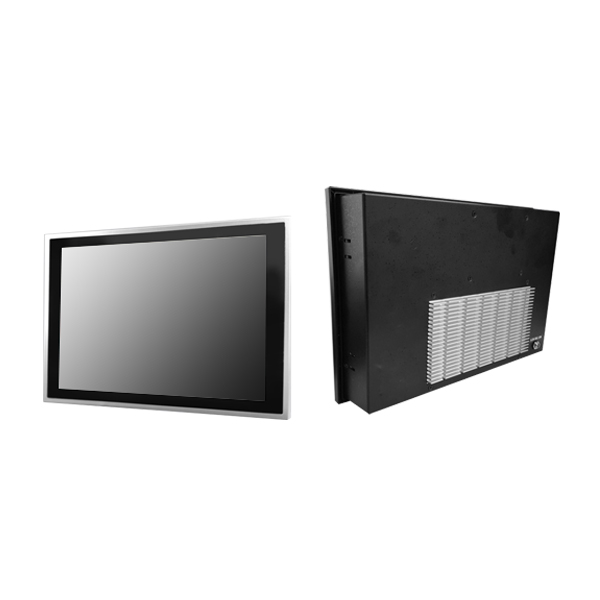

Zero Bezel Panel Mount, 10.1" LCD Monitor 1280 x 800, LED 1000 nits, VGA input, wide view angle and wide temperature, Intel® Core i3 Processor (Model: EPMW1010XHBWTWV-i3-F)
Zero Bezel Panel Mount, 10.1" LCD Monitor 1280 x 800, LED 1000 nits, VGA input, wide view angle and wide temperature, Intel® Core i3 Processor (Model: EPMW1010XHBWTWV-i3-F)
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Intel® Core i3 Processors
- Intel® 8th Gen (Whiskey lake-U)
- Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
- 2 x Display Port, 4 x USB, 2 x LAN
EPMW1010XHBWTWV-i3-F
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
Wide / 10.1" viewable diagonal area |
Active Area / Pixel Pitch |
216.96(H) x 135.6(V) mm / 0.1695(H) x 0.1695(V) mm |
Native Resolution / Colors |
1280(H) x 800(V) / 262 K |
Brightness / Contrast |
1000 cd/m2 (typ) / 800 : 1 |
Response Time |
< 16 ms |
Viewing Angle (typical) |
H. 160° (- 80° ~ + 80° ) , V. 160° (- 80° ~ + 80° ) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
System |
CPU |
Intel® Core i3 / i5 / i7 Processors |
BIOS |
Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors |
System / Graphic Chipset |
SoC |
System Memory |
Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB |
HDD |
2 x SATA |
I/O port |
2 x Display port |
4 x USB 3.0 |
2 x LAN |
1 x Power |
Expansion |
N/A |
Power |
Power Input |
12V DC-IN (Lockable connector) |
Power Consumption |
51 Watt, <1 Watt |
Operating Condition |
Temperature / Humidity |
-20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation) |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
W x H x D = TBD |
Options |
Touch |
Video / TV |
Enhanced Panel |
Others |
Projected Capacitive Touch |
SV + AV |
Panel with LED backlight |
Digital Signage(Stand alone) |
Protected glass |
SV + AV + AV_Looping |
High brightness panel |
Networking Digital Signage |
|
SV + AV + TV |
Wide Temperature |
Motion Sensor |
|
|
Sunlight Readable |
Light Sensor |
|
|
|
Auto-Dimming |
